BlockBoy V2
BlockBoy V2
⚠️ Please note: Batteries cannot be shipped outside the EU. If you are ordering from outside the EU, you will need to purchase the battery locally. Please see the Battery page for more details.
Couldn't load pickup availability
What makes BlockBoy unique

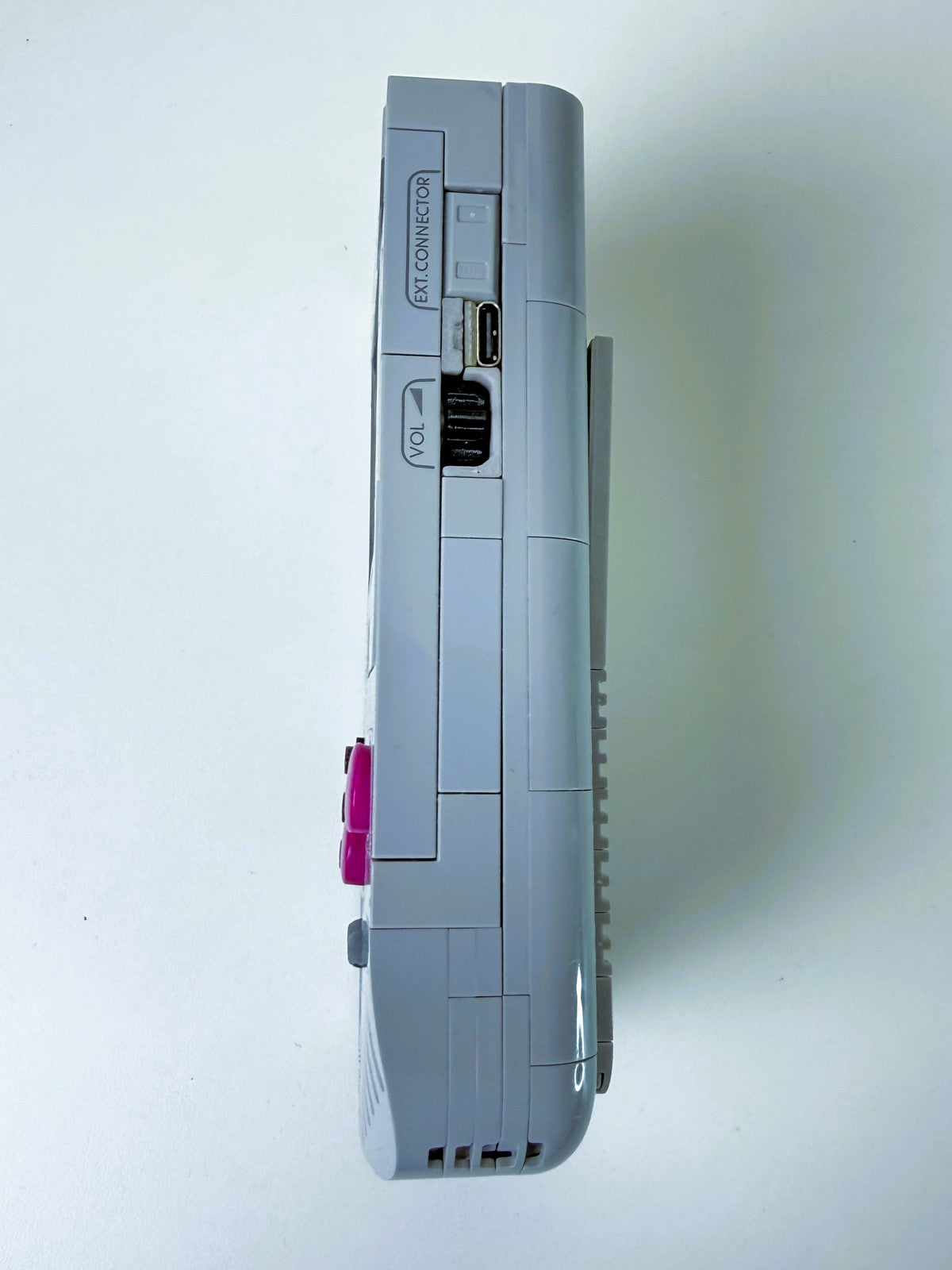

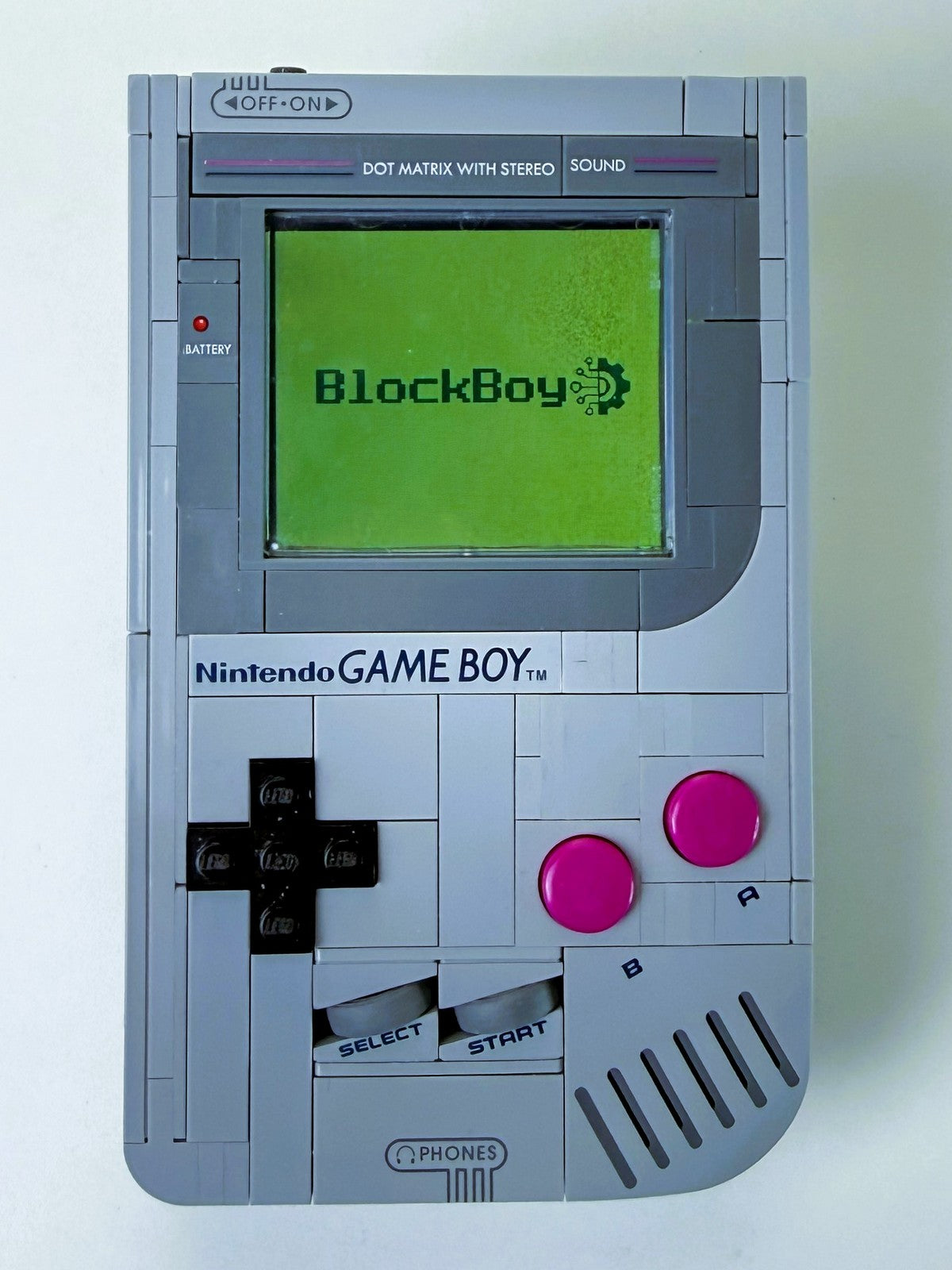

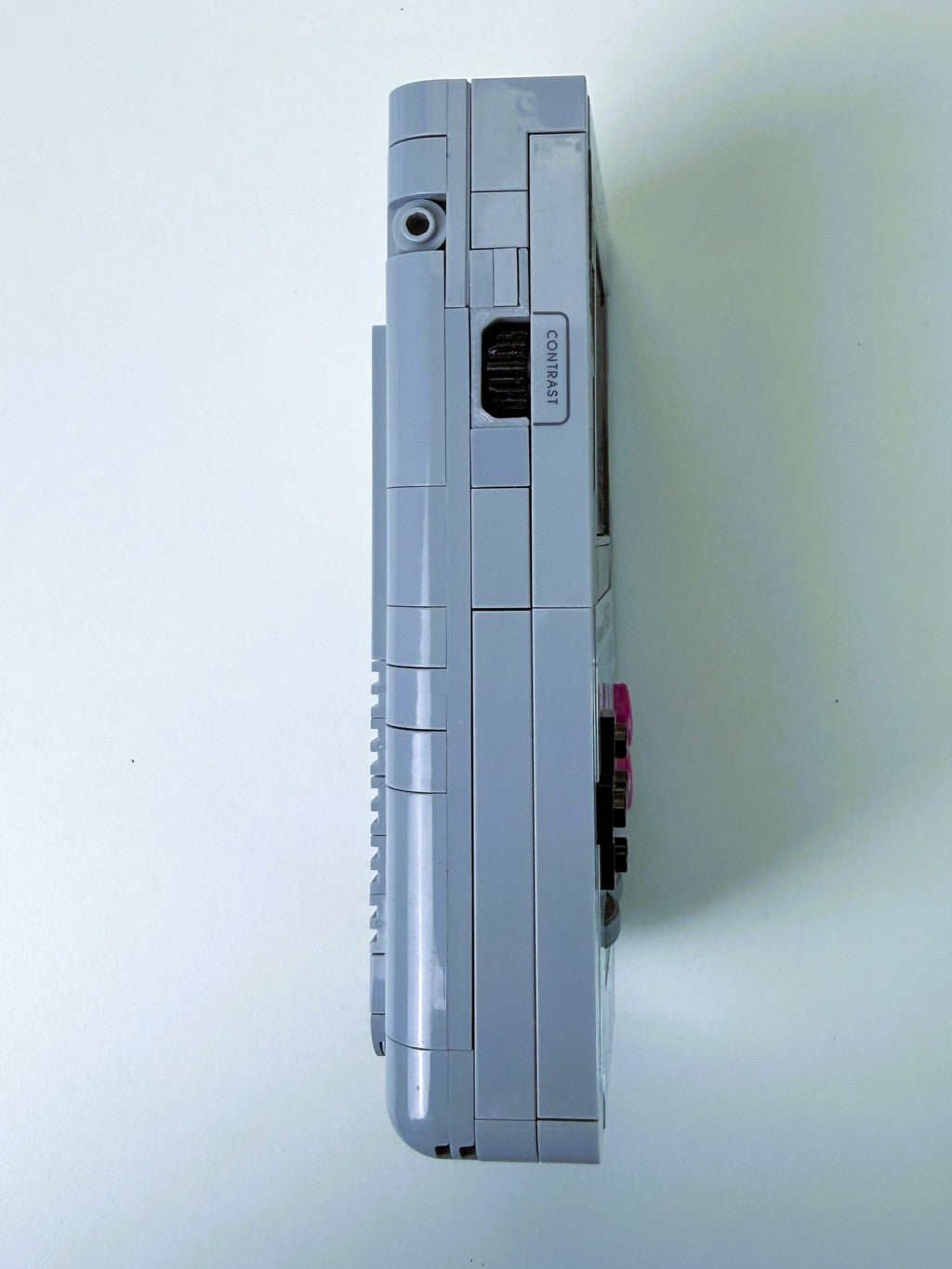

What sets the BlockBoy apart is the obsessive attention to detail. The 2.8 inch display is software-fitted to perfectly fill the window of the LEGO® Game Boy™ set, providing a full and crisp image. Volume and brightness are both managed via custom buttons at the original wheel positions, and the original LEGO power switch turns the BlockBoy on and off. To ensure an authentic feel, the D-pad and A/B buttons use membrane switches, just like the original Game Boy. On top of that, the V2 features a Showcase Mode. Once enabled, the software automatically cycles through your Game Boy and Game Boy Color games, booting a new title every minute to showcase the classic intro demos in a seamless, continuous loop. Powered via a rear USB port to keep the sides cable-free, it is the perfect solution for a clean and active display.
Technical Specifications
- Processor: ESP32-S3 N16R8
- Display: 2.8 inch TFT LCD, fitted to fill the full 2.5 inch window of the LEGO Game Boy set

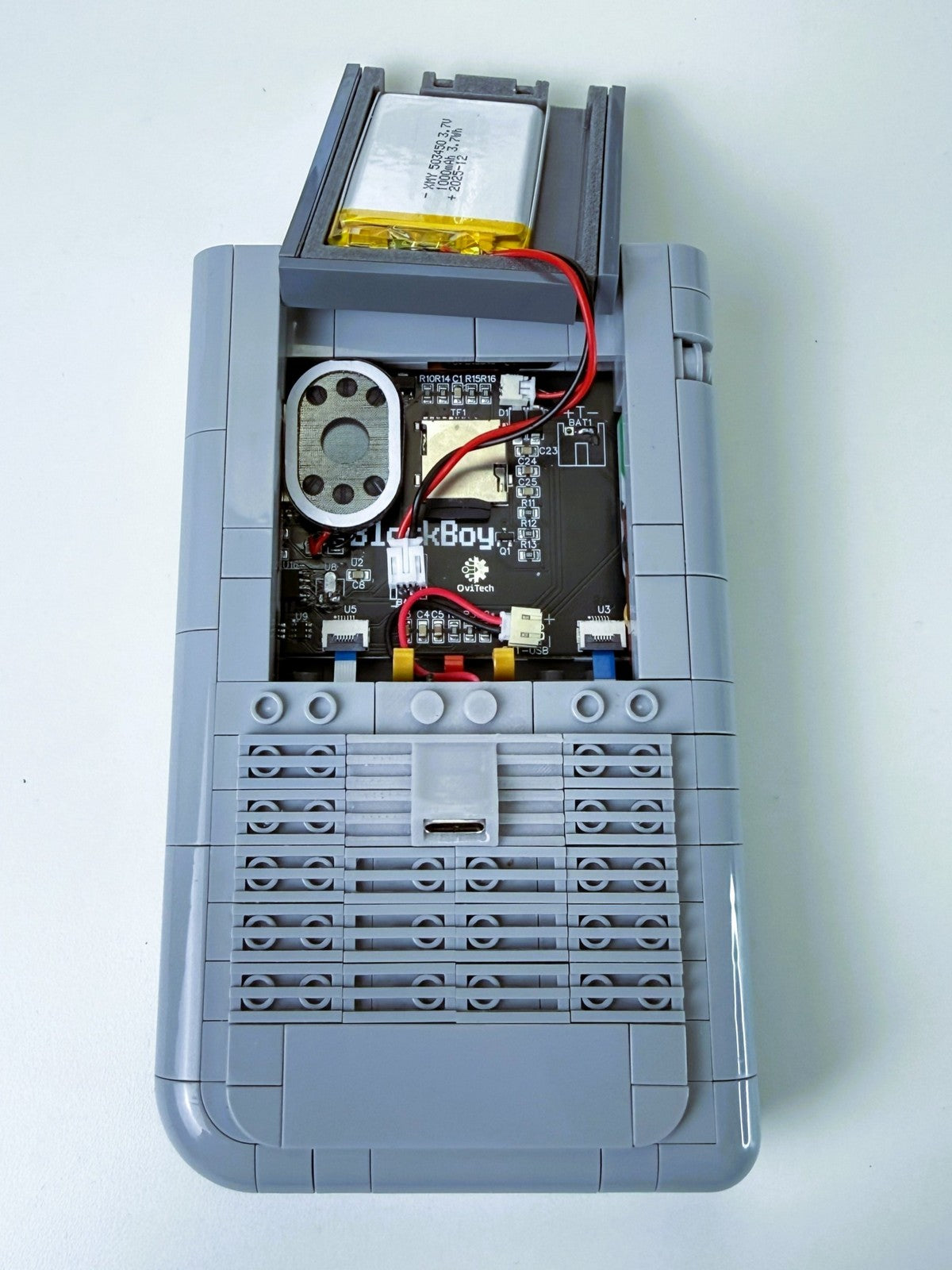

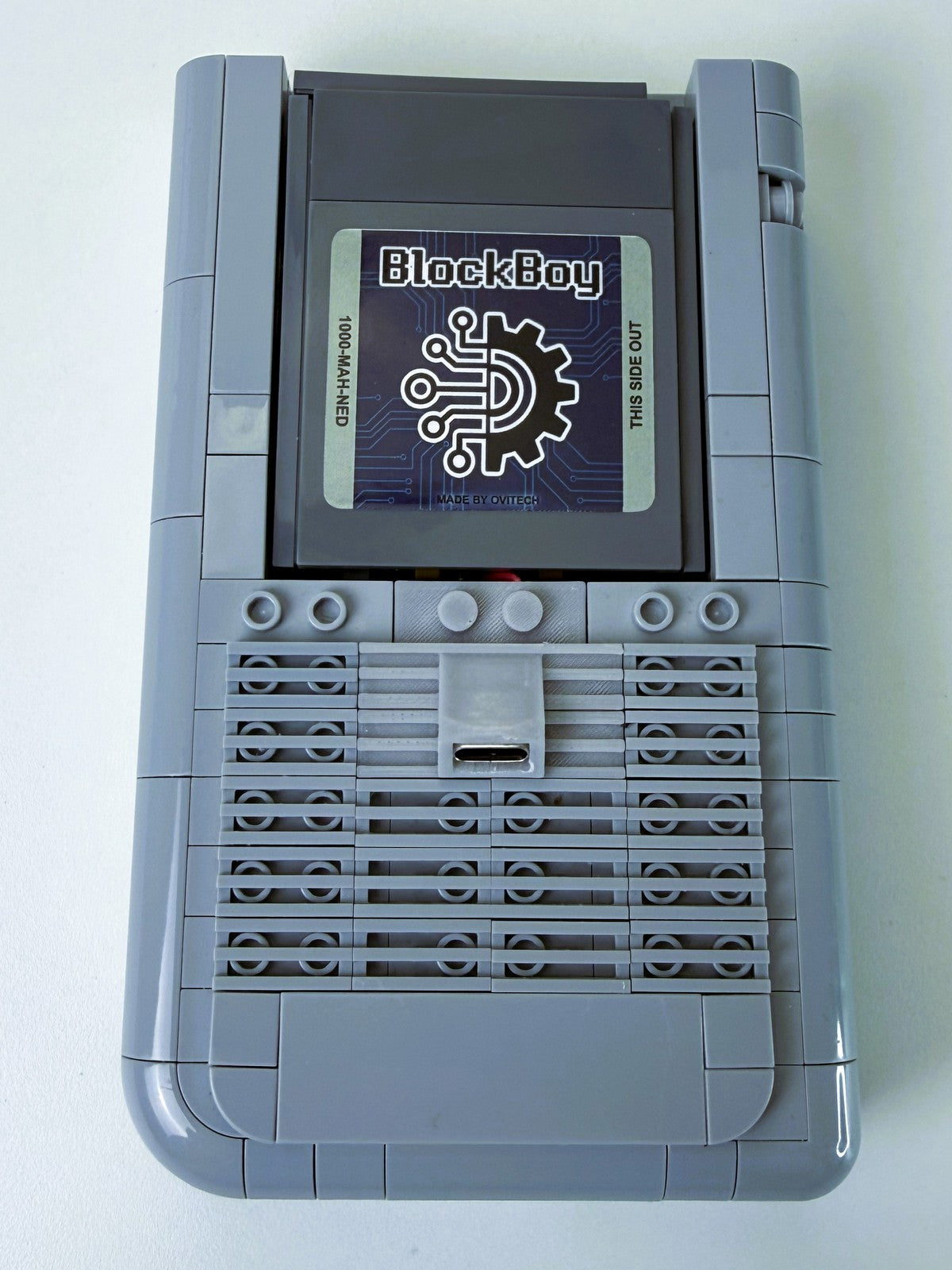

- Battery: 1000mAh rechargeable in custom cartridge
- Speaker: Mono 20x30mm

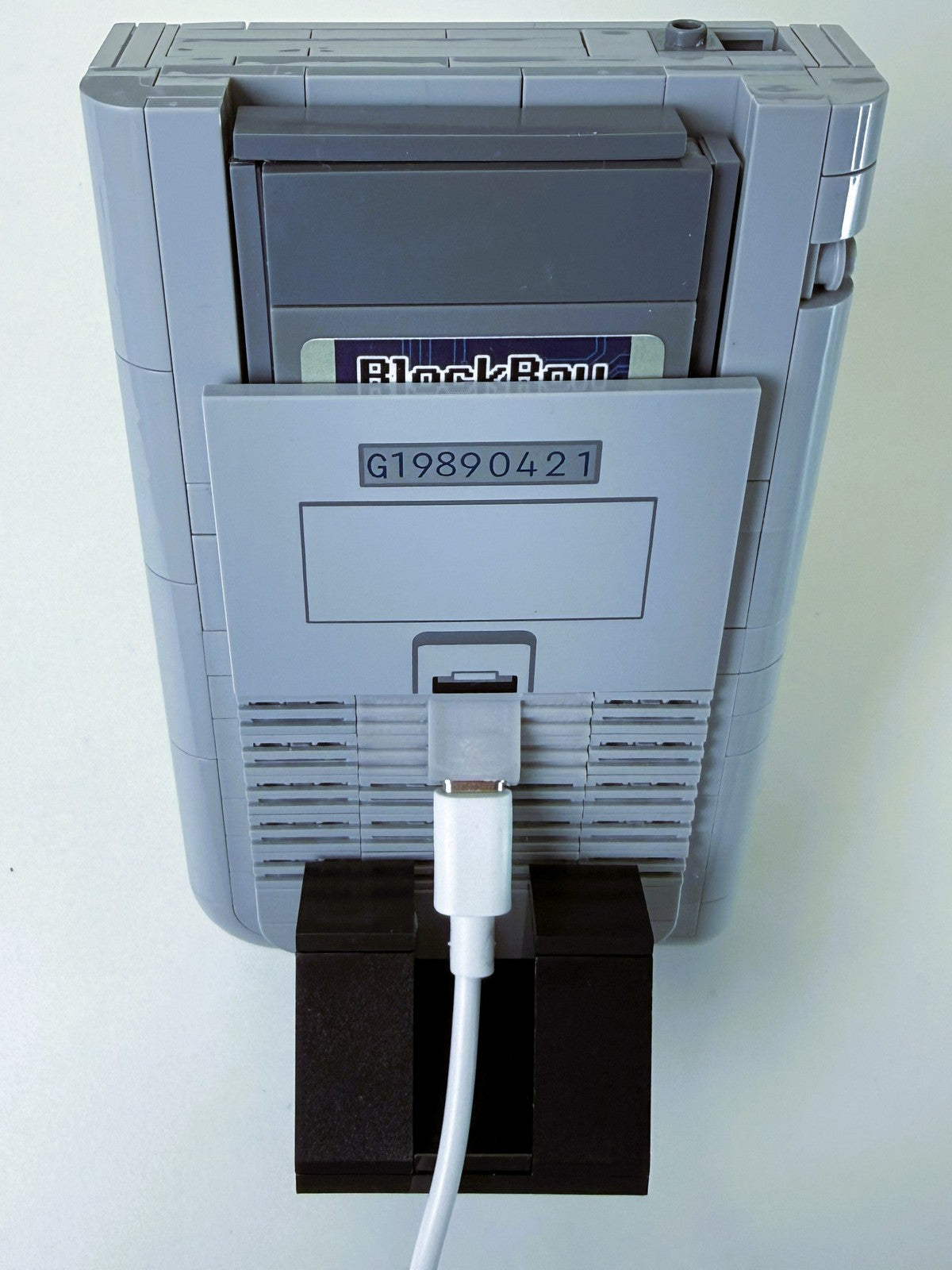

- Showcase mode: Via rear USB port
- Charging: USB-A to USB-C cable. USB-C to USB-C chargers are not supported.
Supported Systems
- Game Boy (GB)
- Game Boy Color (GBC)
- Game Gear (GG)
- Game & Watch (GW)
- NES
- Mega Drive (MD)
- Sega Master System (SMS)
- ColecoVision (COL)
- Native Doom support
Note: The BlockBoy V2 is primarily designed to provide an authentic Game Boy experience. While additional systems are supported, some titles may push the ESP32-S3 to its hardware limits. This can result in frame drops or audio stuttering in more demanding games.

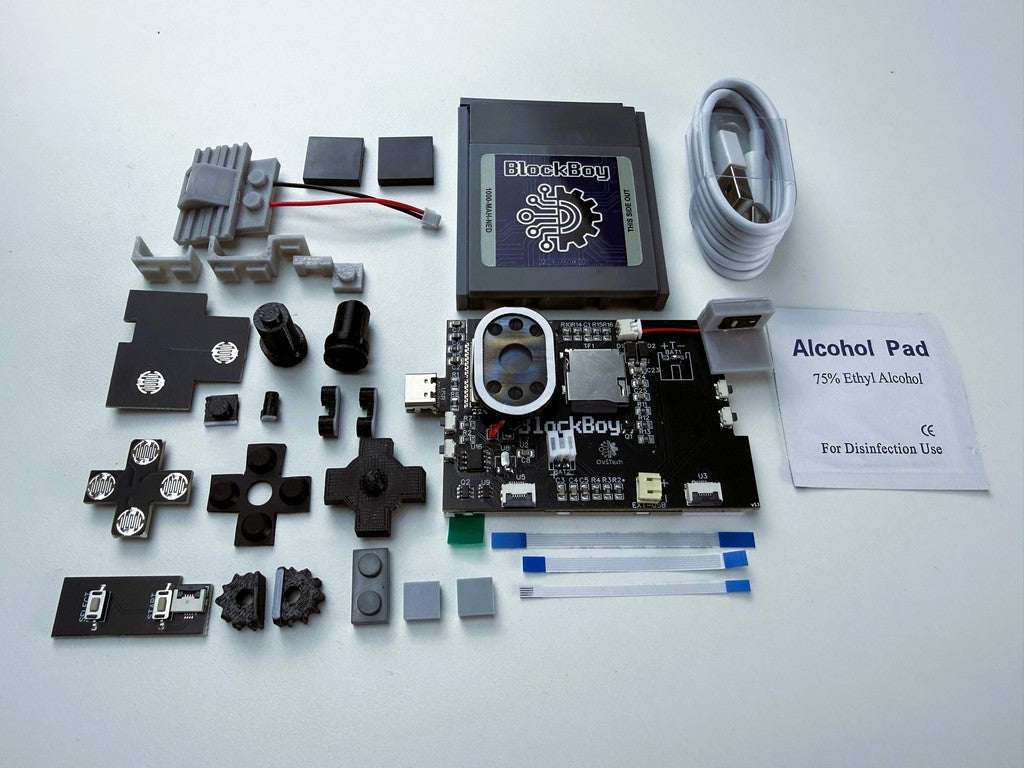

In the Box

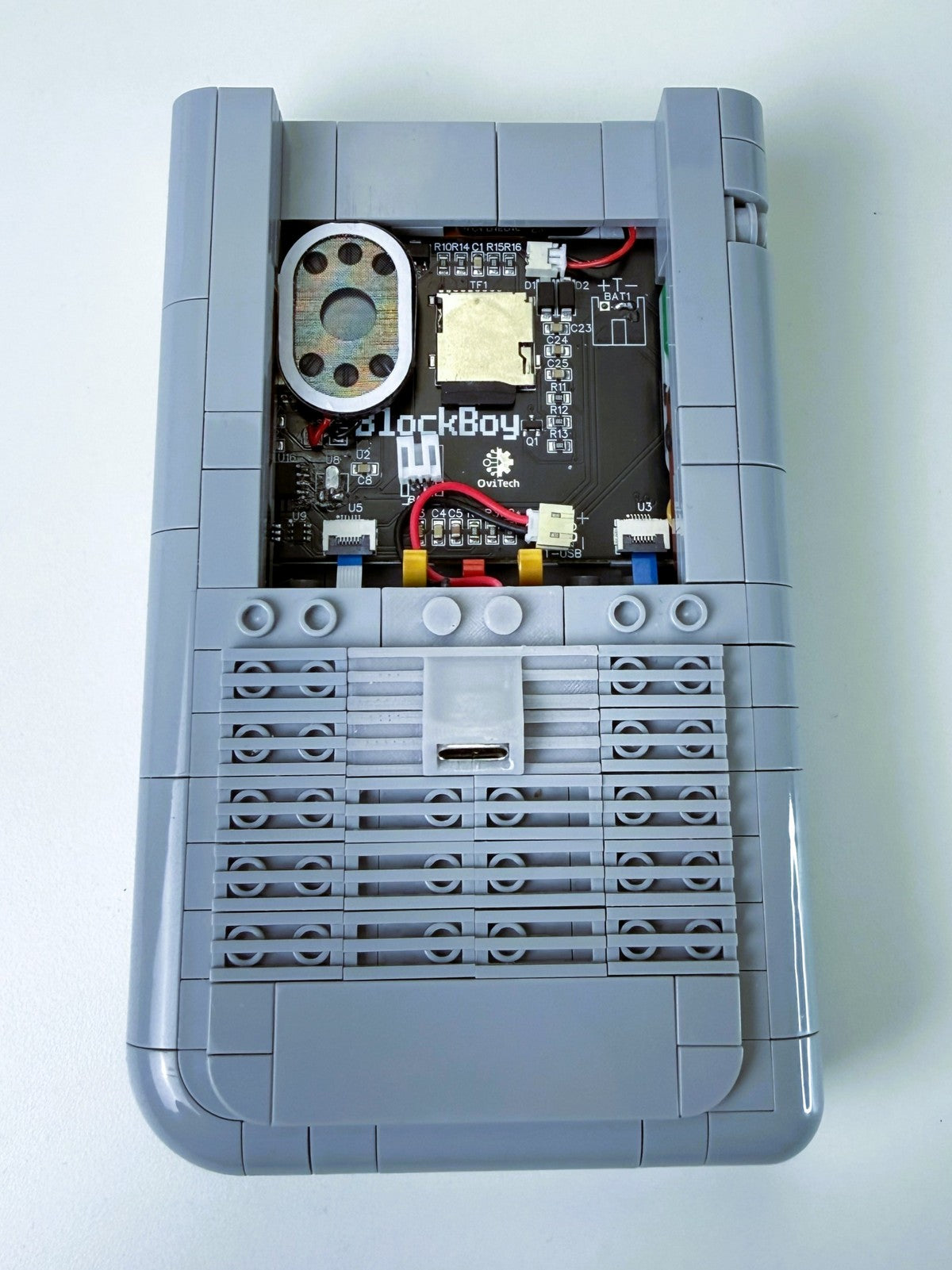

- PCB with display
- 3D printed parts
- 3x button PCB
- 3x flat cables
- USB-A to USB-C cable
- Screwdriver
- Alcohol pad (for cleaning membrane buttons)
- Rear USB port adapter (for showcase mode)
- 1x dark gray 1x2 brick
- 2x light gray 1x1 tile
- 2x black 2x2 tile
Software
The BlockBoy runs on a custom build of https://github.com/ducalex/retro-go, an open-source firmware originally created
by ducalex, licensed under GPLv2.
BlockBoy source code: https://github.com/OviTech-BlockBoy/BlockBoy
MicroSD Requirements
The BlockBoy works with a MicroSD card of up to 32 GB. For best performance, a card from a well-known brand such as SanDisk or Samsung is recommended. The card must be formatted as FAT32 to be recognized by the software. No games or MicroSD cards are included with the kit.
Installation
To install the BlockBoy kit, some original LEGO bricks are replaced or moved. The kit includes all necessary replacement bricks and custom 3D-printed parts to complete the build and fill any gaps.
