Battery Guide
The BlockBoy V3 ships without a battery outside the EU and UK. Find the compatible battery below.
V1 and V2 are no longer sold. This guide covers V3. Still own a V1 or V2? See the battery info for those models at the bottom of this page.
Required connector
Connector type
Nintendo Joy-Con connector (proprietary, 2-pin)
The V3 board has this connector built in, so it only accepts a genuine Nintendo Joy-Con battery (HAC-006). No adapter and no soldering are needed. Just plug it in.
Compatible battery
Be careful with the very cheap generic Joy-Con batteries sold on sites like AliExpress. Even if the advertised capacity looks normal, the real capacity is often only about half of what's stated. The two batteries below are from trusted brands with verified, honest capacity.
✓ Plug & play correct connector, fits directly
★ Recommended verified capacity, trusted brand
~ Soldering wrong connector, needs soldering
| Model | Cap. | Buy | Status |
|---|---|---|---|
|
Cameron Sino CS-NTS015XL |
520 mAh | ★ Recommended | |
|
iFixit Joy-Con Battery |
525 mAh | ★ Recommended | |
|
Switch Joy-Con HAC-006 |
525 mAh | ✓ Plug & play |
All three fit the same 5 × 22 × 50 mm space and use the Nintendo Joy-Con connector described above.
Battery info for V1 & V2
V1 and V2 are no longer sold. The info below is kept for customers who still own one of these models. It does not apply to V3 above.
Like V3, V1 and V2 shipped without a battery outside the EU, but without the UK exception that applies to V3.
Required connector
Connector type

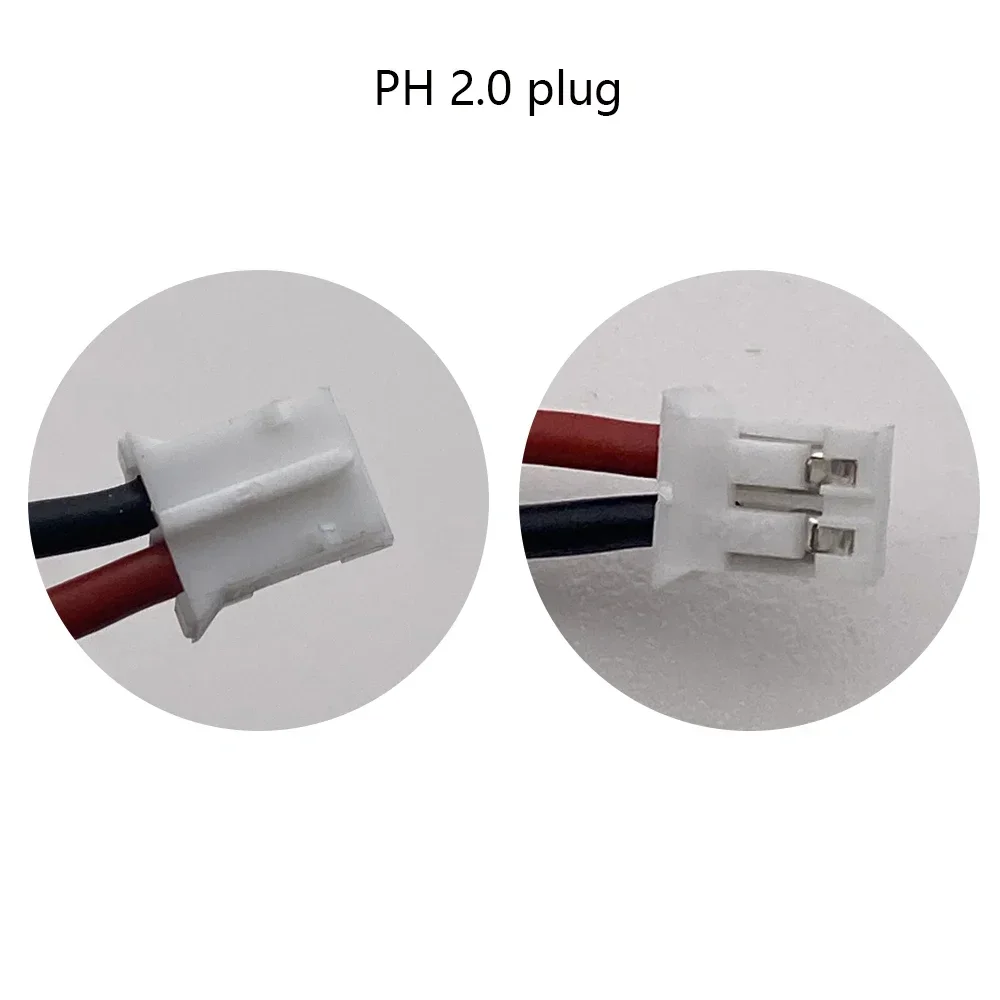

JST PH 2.0 (2-pin)
This is the connector your battery must have. Pin pitch: 2.0 mm. Always check polarity (red = +, black = −) before connecting. Reversed polarity will damage the board.
Available space
Thickness
5 mm
Width
41 mm
Length
52 mm
Compatible batteries
✓ Plug & play correct connector, fits directly
✓ Use adapter adapter included in kit, fits directly
~ Soldering wrong connector, needs soldering
| Model | Size | Cap. | Conn. | Buy | Status |
|---|---|---|---|---|---|
503450
|
5 × 34 × 50 mm | 1000 mAh | JST PH 2.0 | ✓ Plug & play | |
|
Switch Joy-Con HAC-006 |
5 × 22 × 50 mm | 525 mAh | Nintendo prop. |
✓ Use adapter
included in kit |
