OviTech

BlockBoy V1

BlockBoy V1

€114,95 EUR
€114,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

⚠️ Please note: Batteries cannot be shipped outside the EU. If you are ordering from outside the EU, you will need to purchase the battery locally. Please see the Battery page for more details.

battery

What makes BlockBoy unique

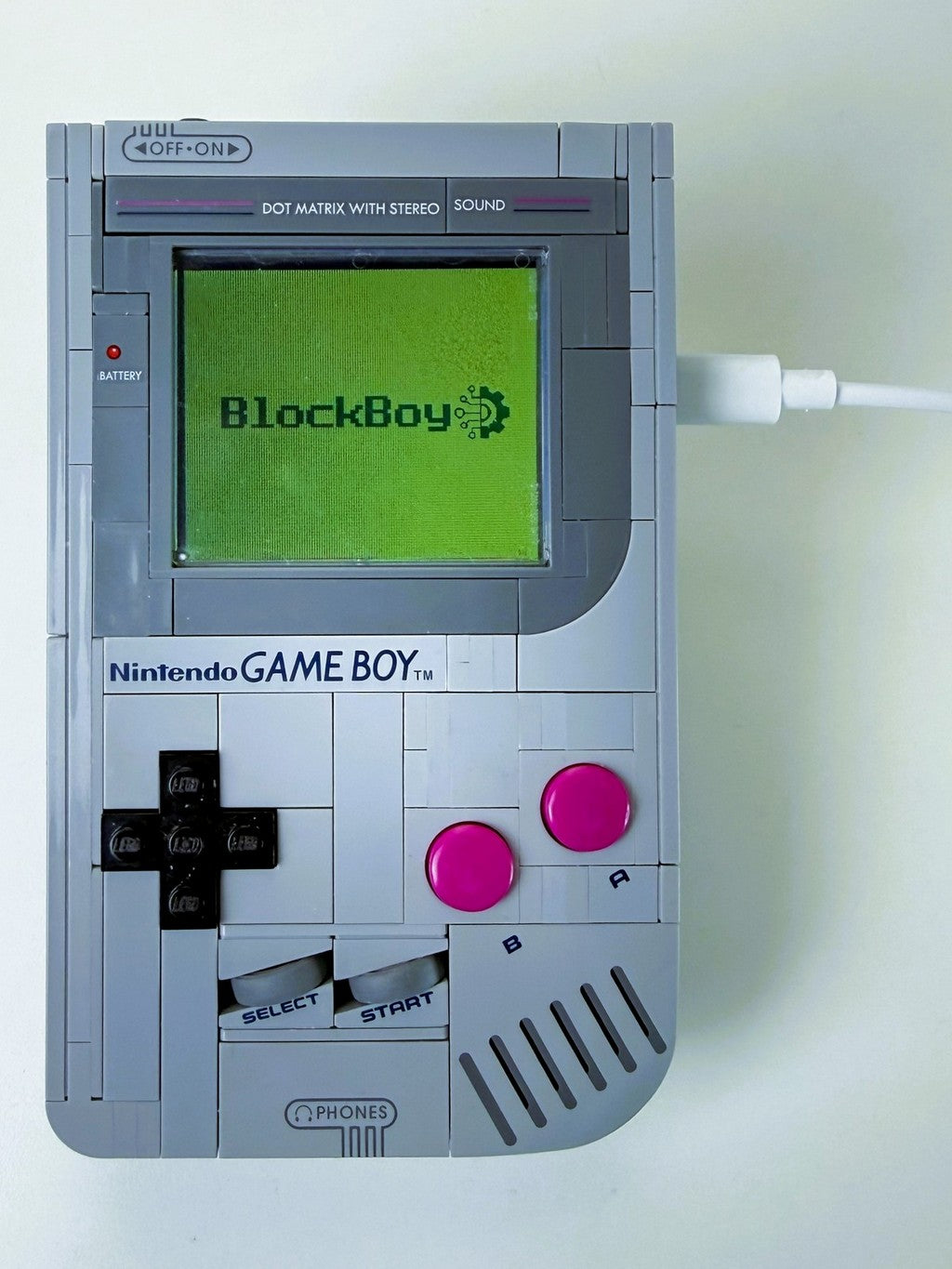

 What sets the BlockBoy apart is the obsessive attention to detail. The 2.8 inch display is software-fitted to perfectly fill the window of the LEGO® Game Boy™ set, providing a full and crisp image. Volume and brightness are both managed via custom buttons at the original wheel positions, and the original LEGO power switch turns the BlockBoy on and off. To ensure an authentic feel, the D-pad and A/B buttons use membrane switches, just like the original Game Boy.

Technical Specifications

  • Processor: ESP32-S3 N4R2
  • Display: 2.8 inch TFT LCD, fitted to fill the full 2.5 inch window of the LEGO Game Boy set

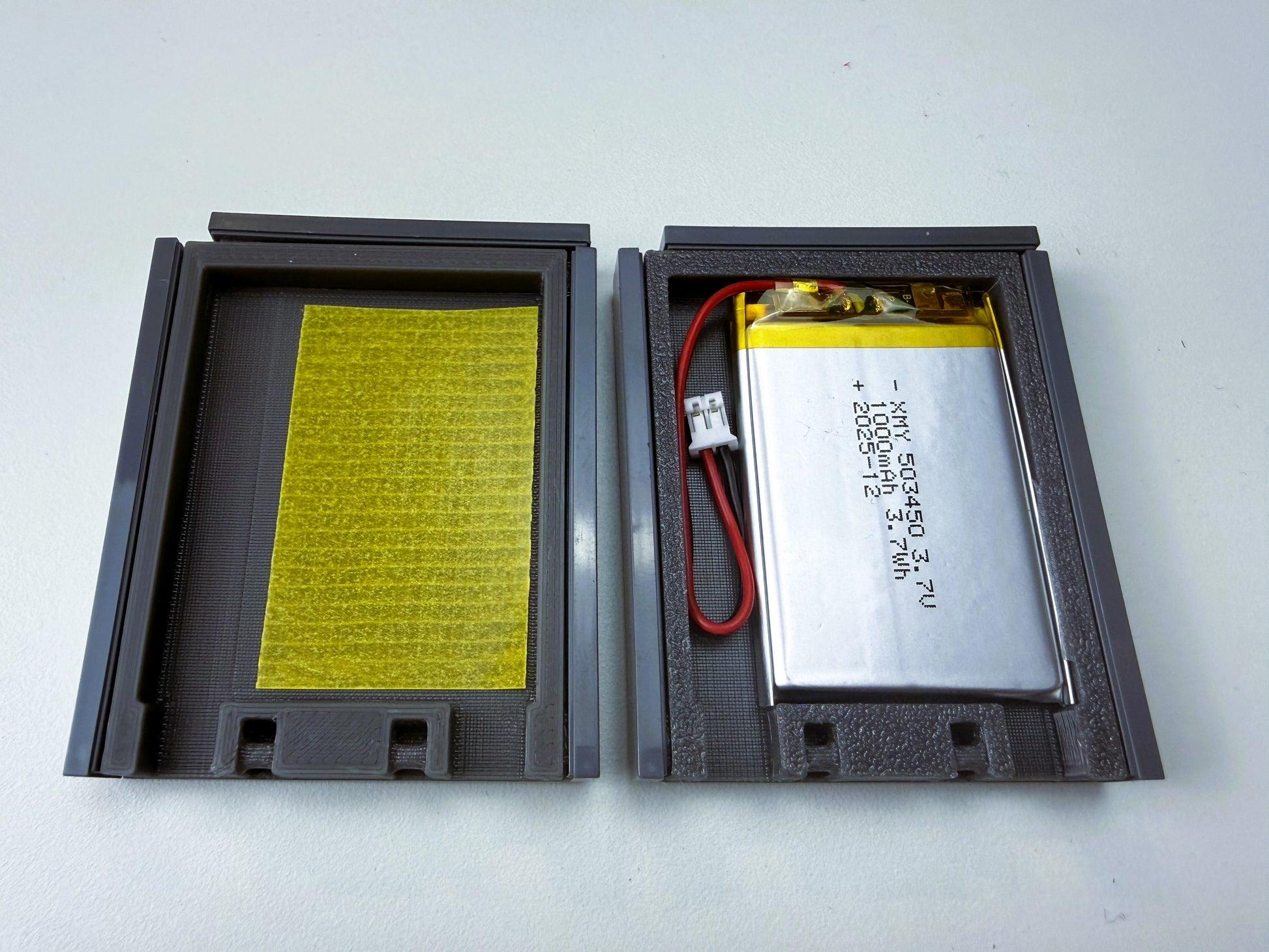

  • Battery: 1000mAh or Joy-Con HAC-006 via included adapter
  • Speaker: Mono 15x24mm
  • Emulation: Game Boy (GB), Game Boy Color (GBC)
  • Charging: USB-A to USB-C cable. USB-C to USB-C chargers are not supported.

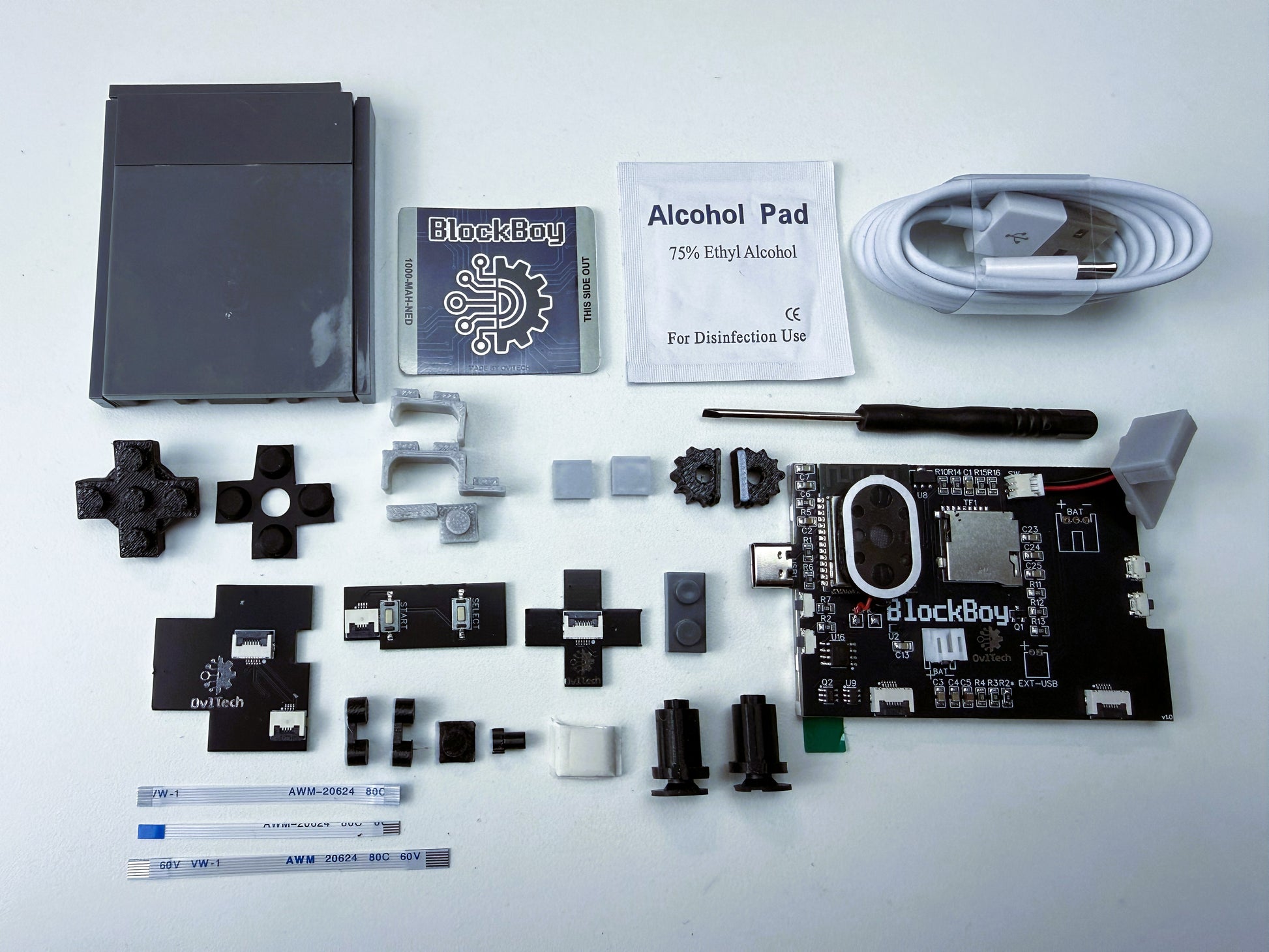

In the Box

  • PCB with display
  • 3D printed parts
  • 3x button PCB
  • 3x flat cables
  • USB-A to USB-C cable
  • Screwdriver
  • Alcohol pad (for cleaning membrane buttons)
  • 1x dark gray 1x2 brick
  • 2x light gray 1x1 tile

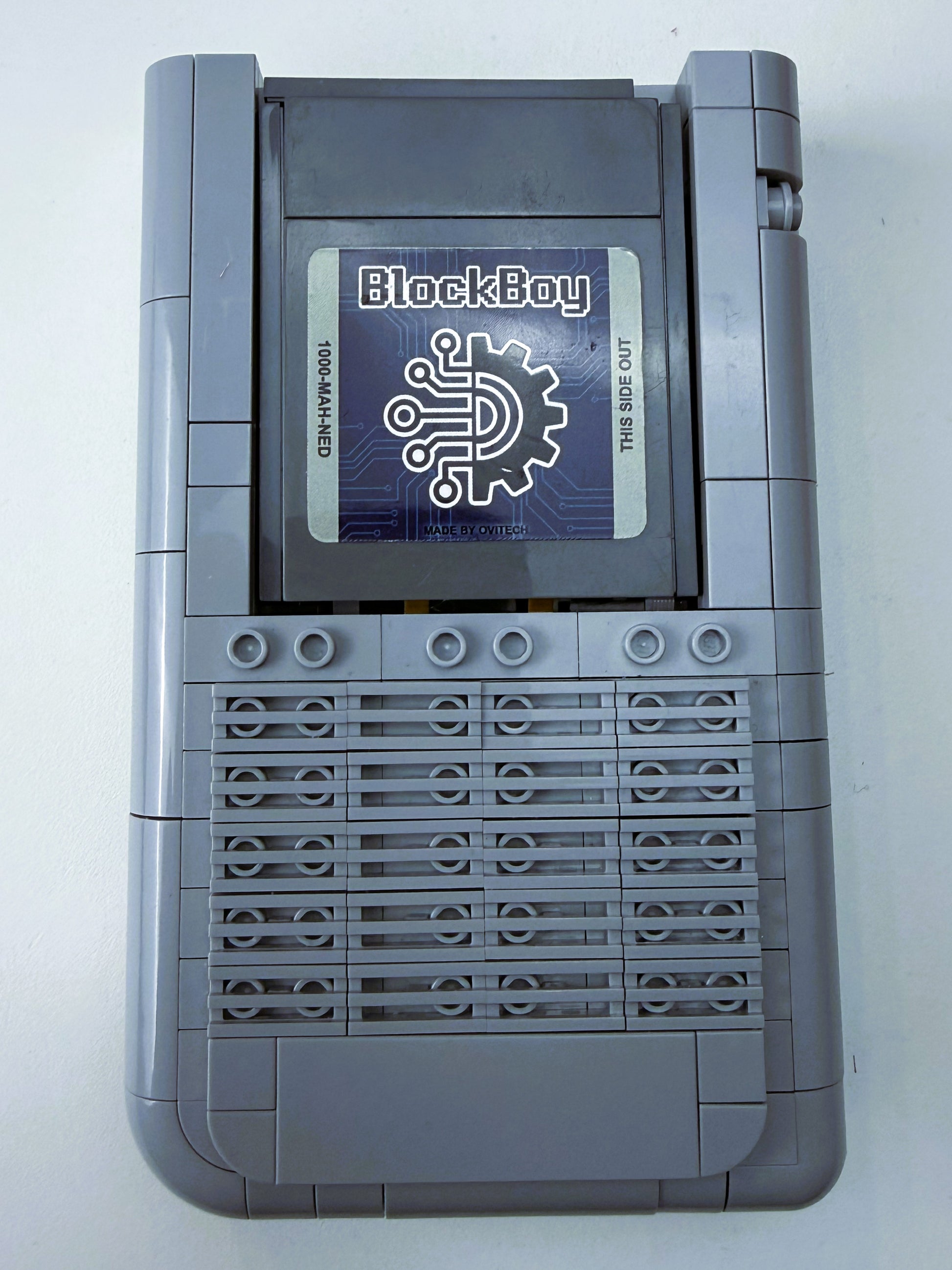

  • Battery cartridge
  • Joy-Con battery adapter (kits without battery only)

Software

The BlockBoy runs on a custom build of https://github.com/ducalex/retro-go, an open-source firmware originally created
by ducalex, licensed under GPLv2.

BlockBoy source code: https://github.com/OviTech-BlockBoy/BlockBoy

MicroSD Requirements

The BlockBoy works with a MicroSD card of up to 32 GB. For best performance, a card from a well-known brand such as SanDisk or Samsung is recommended. The card must be formatted as FAT32 to be recognized by the software. No games or MicroSD cards are included with the kit.

Installation

To install the BlockBoy kit, some original LEGO bricks are replaced or moved. The kit includes all necessary replacement bricks and custom 3D-printed parts to complete the build and fill any gaps.

View full details

Disclaimer


LEGO® and the LEGO logo are trademarks of the LEGO Group. Nintendo® and Game Boy™ are trademarks of Nintendo Co., Ltd. BlockBoy is an independent product and is not sponsored, authorized or endorsed by the LEGO® Group or Nintendo®. All references to LEGO® products and Nintendo® trademarks are used strictly to identify the compatibility of this hardware kit with the specific building set (72046). The building set shown in images is sold separately and is not included with this kit. BlockBoy is a physical hardware kit designed to run custom firmware. The use of game ROMs is the sole responsibility of the end user. BlockBoy does not provide ROMs or game software. Images showing game content are for illustration purposes only.
